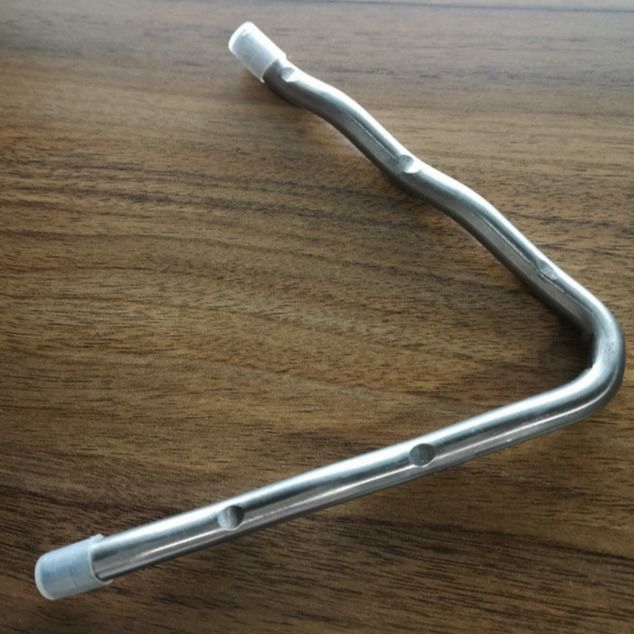

High Temp SS 310 Refractory Anchors In Fix Ceramic Fiber Modules
SS 310 Refractory Anchors refers to the components used to connect the integral refractory lining, prefabricated parts, fiber mats and furnace shell or furnace body steel structure. The function is to fix the connected lining in a certain position to resist static load, thermal stress, mechanical rotation or vibration. SS 310 Refractory Anchors help to prevent the collapse of the material before the ceramic bond is formed during construction and heating. It also helps to make the material shrink evenly and avoid the formation of large and concentrated cracks in the lining.
| Name | High Temp SS 310 Refractory Anchors In Fix Ceramic Fiber Modules |
| Melting Temperature | 1400-1450 °C |
| Application Temperature | 1000 °C |
| Tensile Strength | 558 MPa(N/mm2) |
| Density | 7.96(g/cm3) |
| Microstructure | Austenite |
| Magnetism | Non |
| Length | Customized |
| Equivalent Diameter | Customized |
All models can be corrugated or specially formed for superior holding power.
We can produce the anchors to suit stud welding techniques, hand welding
techniques, or the mechanical bolt-on technique of fastening to the vessel.
C ≤0.08
S ≤0.030
Si ≤1.50
Cr 24-26
Ni 19-22
P ≤0.04
Mn ≤2.00
※ Refractory Industry(Temperature up to 1200 degree)
※ Reinforced &Refractory castable
※ Cement Industry
※ Fix Ceramic Fiber Modules
Our products are sold all over the world, you can rest assured.
