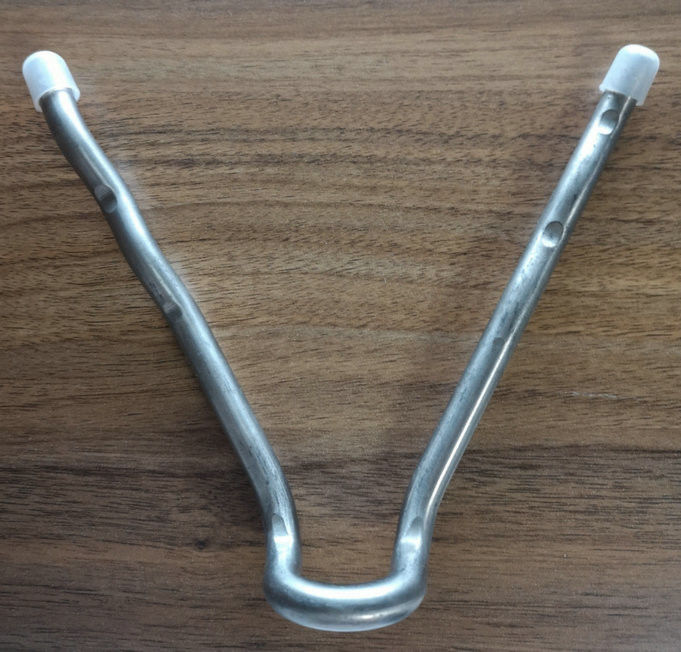

YSL 10×180MM SS 310 Refractory Anchors High Temperature
Refractory Anchors are a structure that joints and fixes between the ceramic fiber products, refractory fire brick, monolithic refractory with the kiln metal wall plate. We should select and use different structures and materials anchors according to the kiln structure, furnace temperature and atmosphere.
C ≤0.08
S ≤0.030
Si ≤1.0
Cr 18-20
Ni 8-20
P ≤0.045
Mn ≤ 2.00
| Name | YSL 10×180MM SS 310 Refractory Anchors High Temperature |
| Melting Temperature | 1400-1425 °C |
| Application Temperature | 890°C |
| Tensile Strength | 490 MPa(N/mm2) |
| Density | 7.91(g/cm3) |
| Microstructure | Austenite |
| Magnetism | Non |
| Length | Customized |
| Equivalent Diameter | Customized |
All models can be corrugated or specially formed for superior holding power.
We can produce the anchors to suit stud welding techniques, hand welding
techniques, or the mechanical bolt-on technique of fastening to the vessel.
※ Refractory Industry(Temperature up to 1O00℃)
※ Reinforced &Refractory castable
※ Cement Industry
※ Petrochemical &Oil Industry
